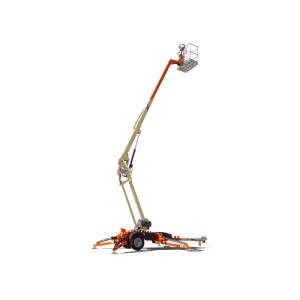

Towable Lift 36' Height
TL37J
Item Details
The Snorkel TL37J is a high specification trailer-mounted boom lift. This highly maneuverable towable lift has fully proportional hydraulics and up-and-over access. Powered platform rotation and auto-leveling outriggers come as standard. This articulating boom also offers a bi-energy option for clean and quiet indoor use.
Max. working height41 ft 9 in
Max. platform height35 ft 9 in
Max. horizontal reach18 ft 5 in
Platform width3 ft 9 in
Platform depth2 ft 4 in
Stabilizer footprint12 ft 9 in x 10 ft 10 in
Towing length20 ft 11 in
Towing width5 ft 3 in
Stowed height6 ft 11 in
Platform capacity (SWL)475 lbs
Max. wind speed28 mph
Jib length4 ft 3 in
Jib arc130°
Platform rotation160°
- 4 ft 3 in, 130º jib (1.3m jib with 130° working arc)
- In-line boom design for maximum rigidity
- Hydraulic stabilizers
- Hand pump emergency lowering from platform
- Lock valves on all hydraulic cylinders
- Proportional live hydraulic controls
- Power line to platform
- Dual lanyard attachment points
